600 ohm to 50K input transformer ratio 1:9.1 Bandwidth 5Hz to 30 kHz. Similar to UTC A10. Mumetal can with side entry colour coded leads Threaded Grommet (Type 1449E) or PCB pins (Type 1449C). Suitable for Drip Electronics Opto 4, Opto 5 and UA 175b PCBs.

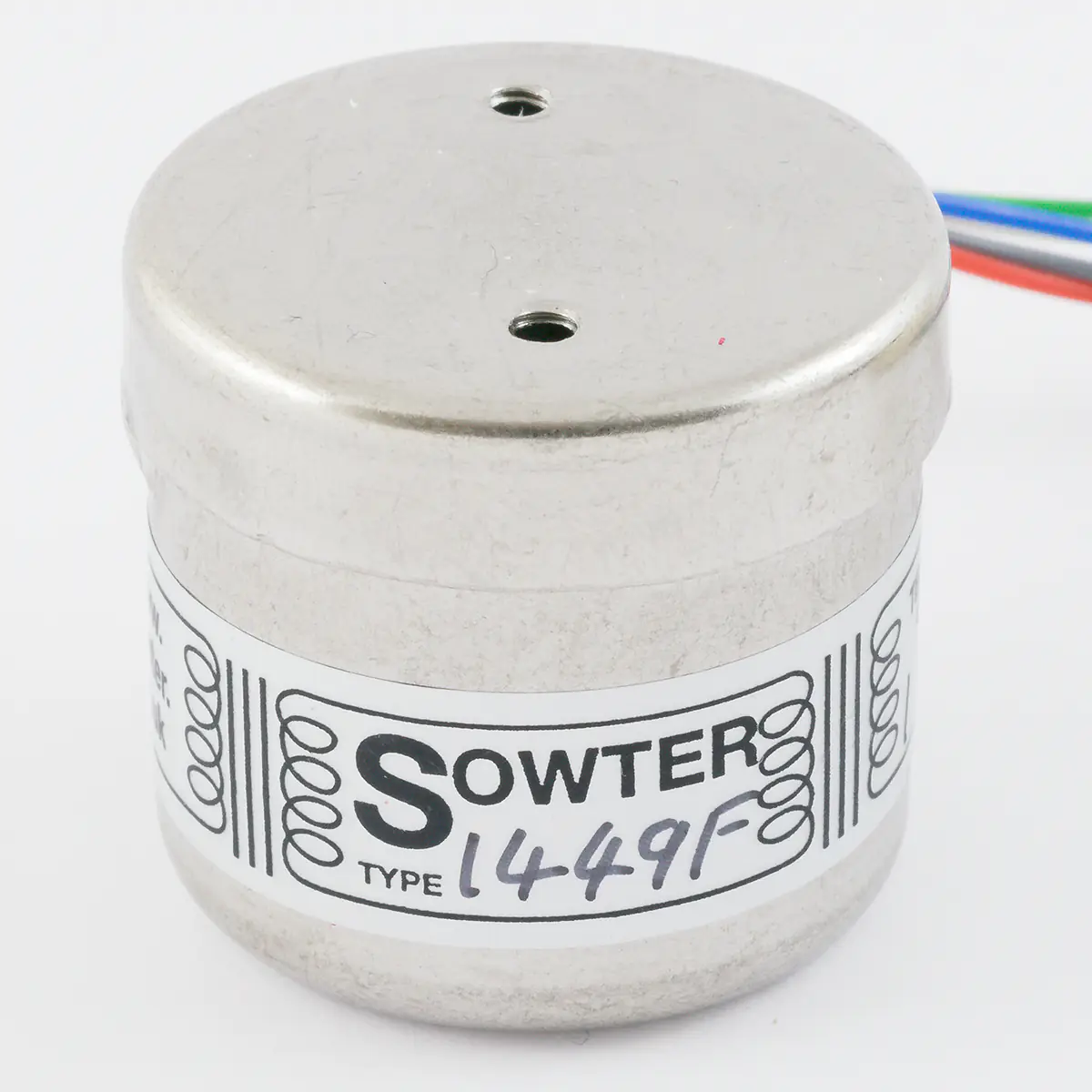

Sowter 1449 Input Transformer
£83.96
UA 175 / Teletronix LA-2A Original Input Transformer (Replaces 1009) Drip Opto 4.
| Weight | 0.185 kg |
|---|---|
| Size | D |
| Order lead time | 6 weeks order time / Available on request |
| Minimum order quantity | 1 |
| PDF Data Sheet Link | https://virtualdesigncloud-test.co.uk/wp-content/uploads/2023/07/1449.pdf |
| Package Types | C, E, F |
